A double-skinned all galvanised steel construction security door and unique cold rolled rebated section steel frame. All BGID steel security door sets are custom-made to suit individual site opening dimensions.
Doors incorporate a high security continuous full height hinge with security pegs, extensive range of vision and ventilation options, along with alternative hardware to suit the doors individual application and usage.

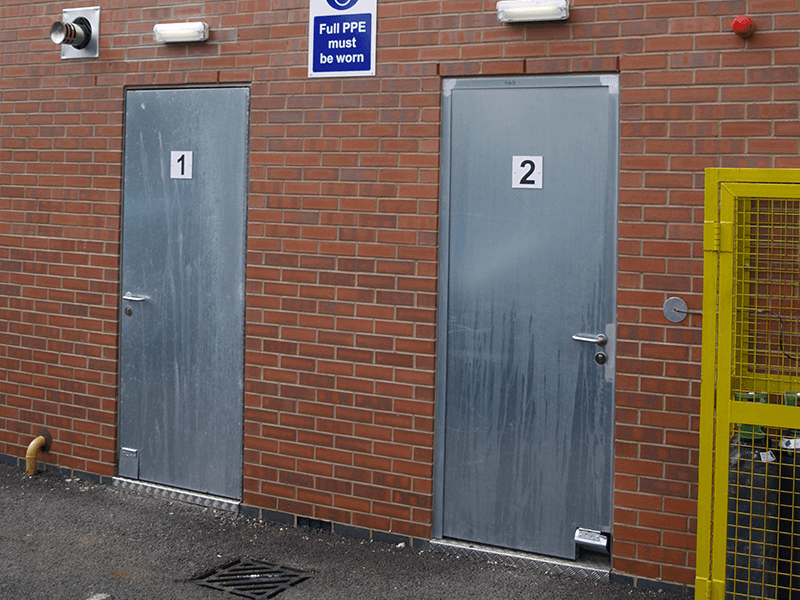

Steel security door and frame sets
A double-skinned all galvanised steel construction security door and unique cold rolled rebated section steel frame. All BGID steel security door sets are custom-made to suit individual site opening dimensions.
A double skinned all galvanised steel construction security door and unique cold rolled rebated section steel frame. All BGID steel security door sets are custom made to suit individual site opening dimensions. Doors incorporate a high security continuous full height hinge with security pegs.
An extensive range of vision and ventilation options, along with alternative hardware to suit the doors individual application and usage.
General Steel Security Door Set Specification:
- Door Leaf: Manufactured from 1.5 mm. galvanised steel sheet, folded and welded to shape, with galvanised steel bracing for strength and for hardware support.
- Frame: Manufactured from 2 mm. galvanised steel, cold rolled to rebated profile – mitered and internally welded corners and complete with heavy duty fixing plates and flat or rebated threshold to client choice.
- Door Furniture: Zinc plated continuous hinge incorporating 2 no. steel security pegs – all other hardware to client or door usage specification, but normally including panic/ emergency exit hardware, mortice locks with lever handles, or BGID’s own unique heavy-duty lock bars, and full Health & Safety or Emergency door signage.
- Finish: Galvanised steel and primed for on-site painting, or fully factory powder coat paint finished to RAL standard colour.

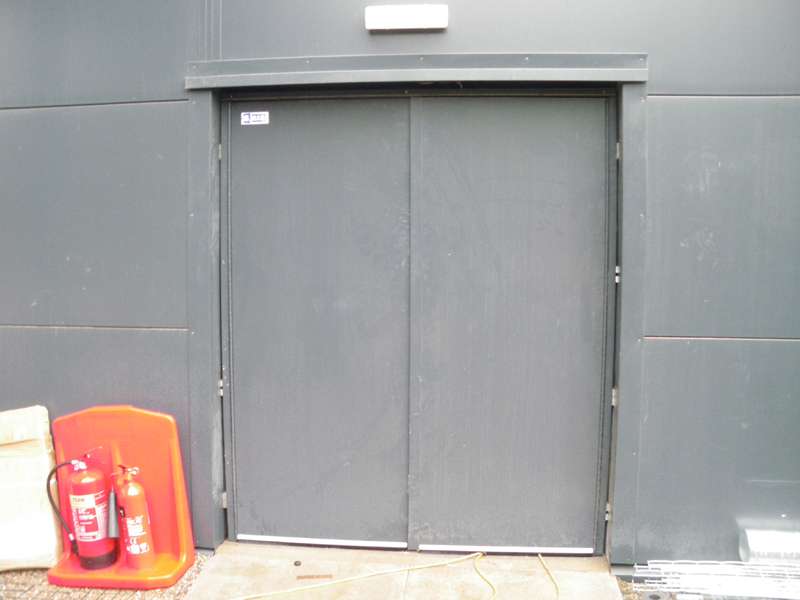

Fire Checker Fire Resisting Door and Frame Sets
A double-skinned all galvanised steel construction door and BGID’s own unique cold rolled rebated section steel frame. All BGID Fire Checker door and frame sets are custom-made to suit individual site opening dimensions. Doors incorporate a high security continuous full height hinge with 2 no. security pegs.
BGID Fire Checker door and frame sets have been tested for 4 hour fire resistance in accordance with BS476 Part 22: 1987
General Fire Checker Specification:
- Door Leaf: Manufactured from 1.5 mm. galvanised steel sheet, folded and welded to shape, with galvanised steel bracing for strength and for hardware support.
- Frame: Manufactured from 2 mm. galvanised steel, cold rolled to rebated profile – mitered and internally welded corners and complete with heavy duty fixing plates and flat or rebated threshold to client choice.
- Door Furniture: Zinc plated continuous hinge incorporating 2 no. steel security pegs – all other hardware to a client or door usage specification – but please note that a door with a 2-hour rating requires a suitable door closer and in addition, for a 4-hour rated door, all hardware, particularly locks, must be manufactured from steel.
- Finish: Galvanised steel and primed, for on-site painting, or fully factory powder coat paint finished to RAL standard colours.
Need help? Ask a question
Repairs and Servicing Number: 0121 559 8666
Out of Hours Emergency 24/7 Callout: 07778 375 310
Or send us message below
Garage Doors
BGID manufacture, supply and install our own Rowley Range steel side hinged garage doors – these doors are of outstanding specification and construction and are all purpose-made to suit individual opening and client requirements. We also supply and install Garador Up & Overs and Sectionals, as well as Aluroll Roller Shutters.
Industrial Doors
BGID has been manufacturing, supplying, and installing industrial doors and roller shutters for the commercial and security sectors, for 50 years.
The Company has earned an enviable reputation for its experience, expertise and customer service in the area
Securi-Store
From a local convenience store to large supermarkets, the Securi-Store range provides a visible, physical security system. Full shop front systems; curtain walling, roller shutters, window grilles, and bars as well as a range of complementary products; door and frame sets, security boxes, cupboards, and much more
Powder-Coating
Our powder coating facility offers fast, flexible and quality finishes to your steel products with 180 RAL colours to choose from.
We also offer steel fabrication services to create bespoke gates and barriers, security cupboards and doors manufactured and powder coated in-house at BGID
