Securi-store retail security
From Securi-Store, Kestrel Shop Front Systems, and Kestrel Glazed Curtain Walling, comprising aluminium sections – usually powder coat paint finished to colour – appropriate safety glazing – hinged, pivoting, or sliding door panels – manual or power operated with PIR sensing and safety overrides to current EU legislation requirements.
To Securi-Store Shop Front Roller Shutters – solid lath – punched lath – perforated lath – all usually powder coat paint finished and either manual or, more conveniently, motorised with a variety of low voltage control systems. Securi-Store Window Grilles and Bars – usually fixed for permanent protection – manufactured from galvanised steel and powder coat paint finished to RAL standard colour.
For improved security within retail premises, BGID Securi-Store Boxes, Cupboards and Bond Rooms are available in a range of standard sizes or made to measure. Of similar robust construction to BGID’s Steel Security door and frame sets, these products provide substantial protection to valuable or desirable stock such as tobacco products – wines and spirits – photographic equipment – computer peripherals etc.
Protection for the shop front itself, and indeed for the side or rear access doors to the building, can be provided by incorporating BGID’s Securi-Store Anti Ram-Raid Bollards and Churchill Steel Security door and frame sets. Both offer a clearly visible, and substantial physical barrier.

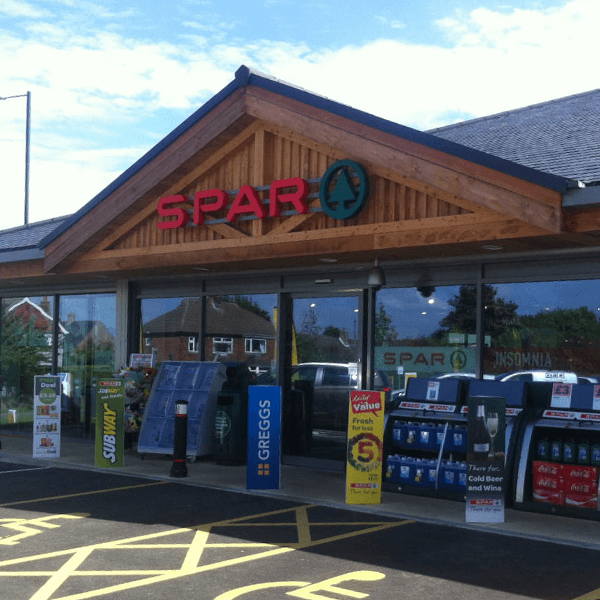

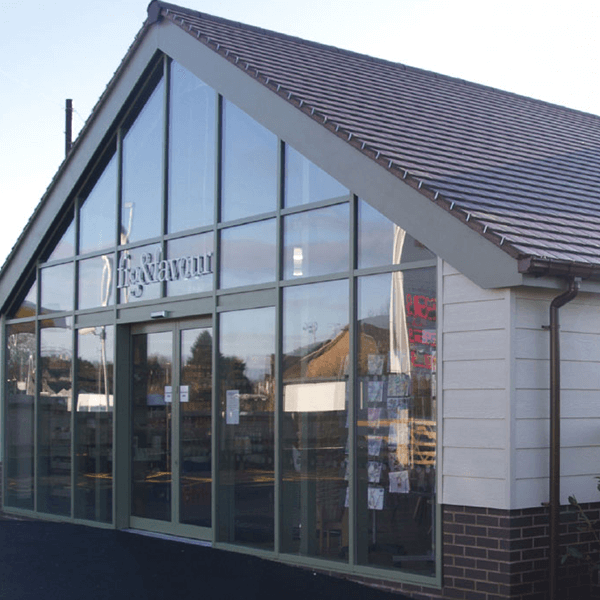

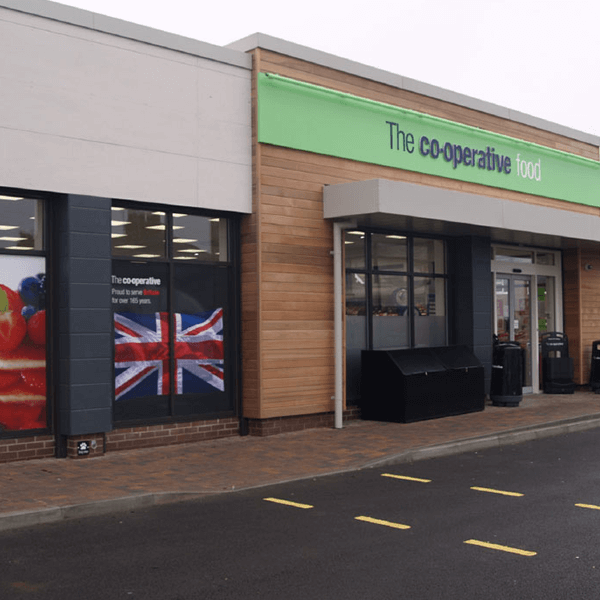

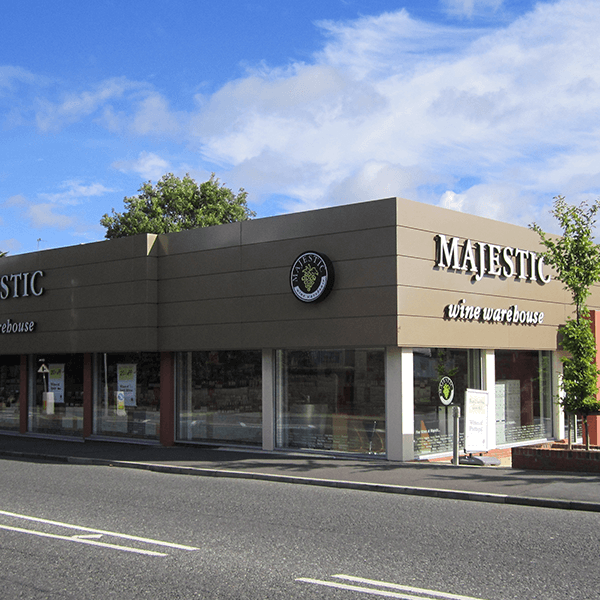

Kestrel shop front systems
A Kestrel shop front system, comprising Kestrel aluminium framed and suitably glazed windows and
doors combined with BGID’s own Securi-Store range of shop front rolling shutters.
Material
A range of Kestrel aluminium sections extruded from 6063 T6 alloy to BS 1474 stansard are used to create an architectural aluminium system which will provide shop fronts and entrance units capable of meeting the demands of busy public, commercial and retail premises.
Doors
The range of Kestrel profiles available allows a choice between, pivot swing, hinged swing and sliding access doors. All doors are internally beaded for security, and open over low or no threshold, allowing easy access for wheel chair users and safe pedestrian walk through.
Glazing
Glazing conforms with the requirements of BS EN 12600 and to BS 6262 for thickness and type. Glazing beads and gaskets can accommodate glass between 6 mm. to 28 mm. nominal thickness, which meets the requirements of BS6262 Code of Practice for Glazing of Buildings.
Door Controls
Entrance doors are often automated with appropriate electric motors, and control units offering volumetric sensors using infra-red or microwave technology – safety photocells and digital or key selectors are also available. Installation of this equipment conforms with BS EN 16005 : 2012 and to BS 7036, which covers the safety of powered doors for pedestrian use.
BGID have teamed up with UK manufacturer JMD Automatic Doors to provide power operated doors of every type, with control systems to suit individual client requirements.
Finishing
The Kestrel aluminium sections are normally powder coat paint finished to RAL standard colour and to BS 6496 – where the sections are anodised, this is to 25 microns in accordance with BS 3987 1991.
All sections are pre-treated and Phosphated prior to powder coat paint finishing in BGID’s own continuous process plant, to ensure quality and consistency of the paint finish.
Shop front roller shutters
A clearly visible security barrier of all galvanised steel construction provides a very obvious deterrent to them, would-be criminals.
Curtain
Shutter lath manufactured from curved 0.9 mm. (20g) x 75 mm. galvanised steel.
Lath Punching
Lath is supplied solid (no through vision) or with 3 mm. staggered perforated pattern, or punched 125 mm. x 25mm., available in-line or brick bond pattern.
Guide Channel
75 mm. deep x 32 mm. wide x 3 mm. wall thickness
Canopy: 0.9 mm. (20g) galvanised steel formed to enclose head plates, motor, and barrel assembly.
Operation
Manual with counter-balanced spring assembly, or electric, with built-in tubular motor incorporating fail-safe anti-drop mechanism and a variety of low voltage controls.
Finish
Supplied galvanised as standard, or can be fully factory powder coat paint finished to RAL standard colours.
Window Grilles & Bars
Another clearly visible security barrier to protect valuable stock – usually used on side or rear windows, providing permanent protection.
Grilles & Bars
Manufactured from 19 mm. mild steel round bar to standard or individual client pattern.
Outer Frame
Manufactured from 50 x 10 mm. mild steel flat to provide substantial fixing points for the grille or bar assembly into the surrounding structure.
Finish
Can be supplied primed, but more commonly fully factory powder coat paint finished to RAL standard colour.
Need help? Ask a question
Repairs and Servicing Number: 0121 559 8666
Out of Hours Emergency 24/7 Callout: 07778 375 310
Box Cupboards & Bond Rooms
A family of tough strong boxes and cupboards, providing secure storage for valuable stock. Available in a range of standard sizes, or made to measure.
Wall & Roof Panels
Manufactured from 1.5 mm. galvanised steel sheet, folded and welded to shape, with galvanised steel bracing for strength and to provide shelving support. Note that roof panels to Bond Rooms, are supplied with a channel section boundary frame for improved location and fixing.
Access Door(s)
Manufactuared from 1.5 mm. galvanised steel sheet, folded and welded to shape, and with galvanised steel bracing for strength and for hardware location.
Hardware
Doors to Securi-Store Bond Rooms and Cupboards are supplied with continuous full height hinges, and 2 no. BGID internally mounted lock bars with bullet locks – for Securi-Store Boxes, a heavy duty hasp and staple with padlock is supplied.
Shelving
Securi-Store Bond Rooms and Cupboards are supplied with a “Spur” type, fully height adjustable shelving system, complete with either block board or steel shelving.
Finish
As standard, supplied galvanised steel and grey primer painted – optional to be fully factory powder coat paint finished to RAL standard colour sizes.
| SSR/1: H 2400 mm. W 1830 mm. D 2440 mm. |
| SSR/2: H 2400mm. W 1830 mm. D 1830 mm. |
| SSR/3: H 2400mm. W 1830mm. D 1200mm. |
| SSB/1: H 914 mm. W 568 mm. D 521 mm. |
| SSB/2: H 914 mm. W 1143 mm. D 521 mm. |
| SSB/3: H 914 mm. W 1143 mm. D 978 mm. |
| SSC/1: H 2050 mm. W 914 mm. D 610 mm. |
| SSC/2: H 2050 mm. W 1220 mm. D 610 mm. |
| SSR/3: H 2400mm. W 1830mm. D 1200mm. |
*Note: In line with BGID’s policy that “flexibility is our strength” each of these products can be custom built to suit individual site conditions.*
Anti Ram - Bollards
A range of fixed and removable bollards, which are ideal for protecting access points – driveways and specific parking areas.
Fixed Bollards
125 mm. x 2 mm. wall thickness – protrudes 950 mm. above ground level, and the base is supplied with welded on spigots to assist with positive location. Bollards are supplied with a removable cast aluminium cap – can therefore be filled with concrete for even greater strength.
Removable Bollards
125 mm. x 2 mm. wall thickness – protrudes 950 mm. above ground level and complete with 125 mm. x 125 mm. x 305 mm. deep box with flush fitting lid. Bollards are supplied with cast aluminium cap.
Finish
Grey primer painted as standard, but also available fully factory powder coat paint finished to RAL standard colour.
Need help? Ask a question
Repairs and Servicing Number: 0121 559 8666
Out of Hours Emergency 24/7 Callout: 07778 375 310
Or send us message below
Garage Doors
BGID manufacture, supply and install our own Rowley Range steel side hinged garage doors – these doors are of outstanding specification and construction and are all purpose-made to suit individual opening and client requirements. We also supply and install Garador Up & Overs and Sectionals, as well as Aluroll Roller Shutters.
Industrial Doors
BGID has been manufacturing, supplying, and installing industrial doors and roller shutters for the commercial and security sectors, for 50 years.
The Company has earned an enviable reputation for its experience, expertise and customer service in the area
Securi-Store
From a local convenience store to large supermarkets, the Securi-Store range provides a visible, physical security system. Full shop front systems; curtain walling, roller shutters, window grilles, and bars as well as a range of complementary products; door and frame sets, security boxes, cupboards, and much more
Powder-Coating
Our powder coating facility offers fast, flexible and quality finishes to your steel products with 180 RAL colours to choose from.
We also offer steel fabrication services to create bespoke gates and barriers, security cupboards and doors manufactured and powder coated in-house at BGID
