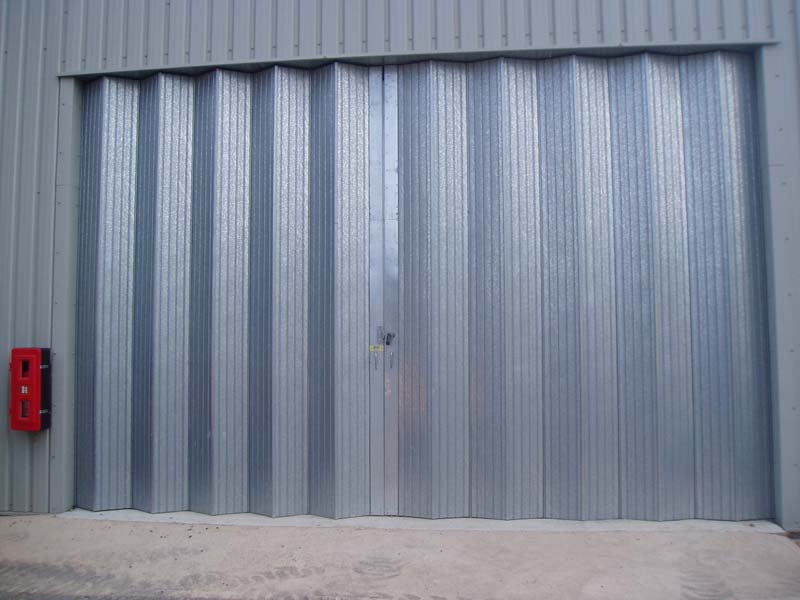

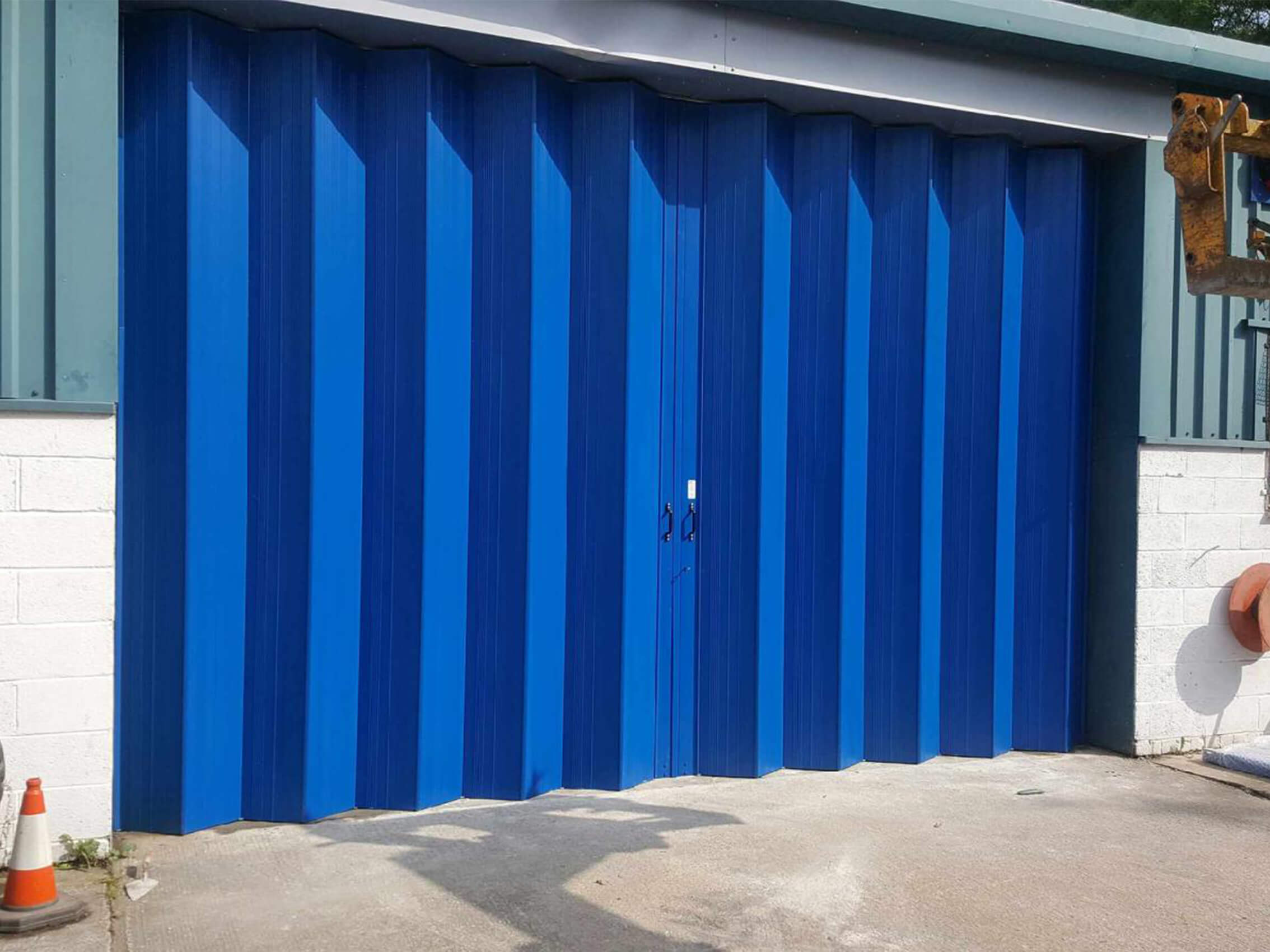

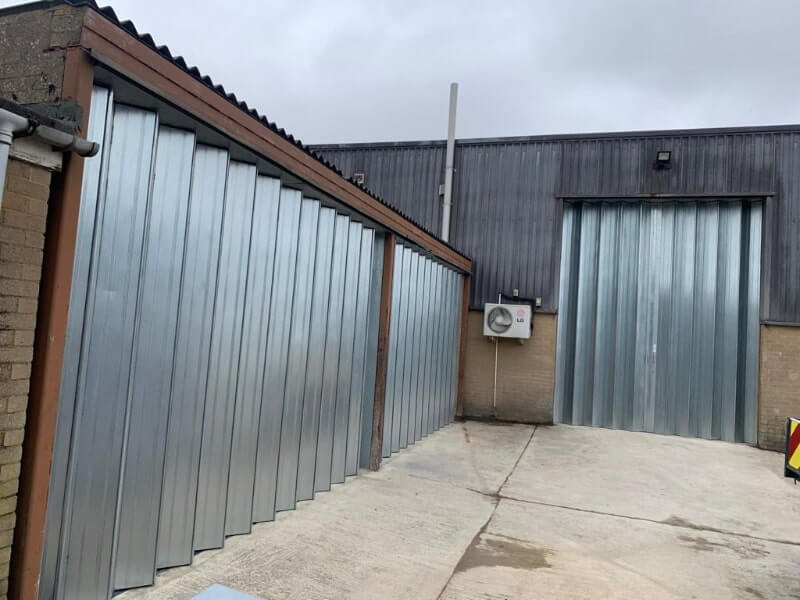

A fully all galvanised steel construction industrial folding shutters, designed, manufactured, and installed to suit specific site dimensions and requirements. Minimal headroom requirements allow this type of door to be used when headroom limitations preclude the use of a traditional roller shutter door.
A double-skinned all galvanised steel construction security door and unique cold rolled rebated section steel frame. All BGID steel security door sets are custom-made to suit individual site opening dimensions.
A double skinned all galvanised steel construction security door and unique cold rolled rebated section steel frame. All BGID steel security door sets are custom made to suit individual site opening dimensions. Doors incorporate a high security continuous full height hinge with security pegs.

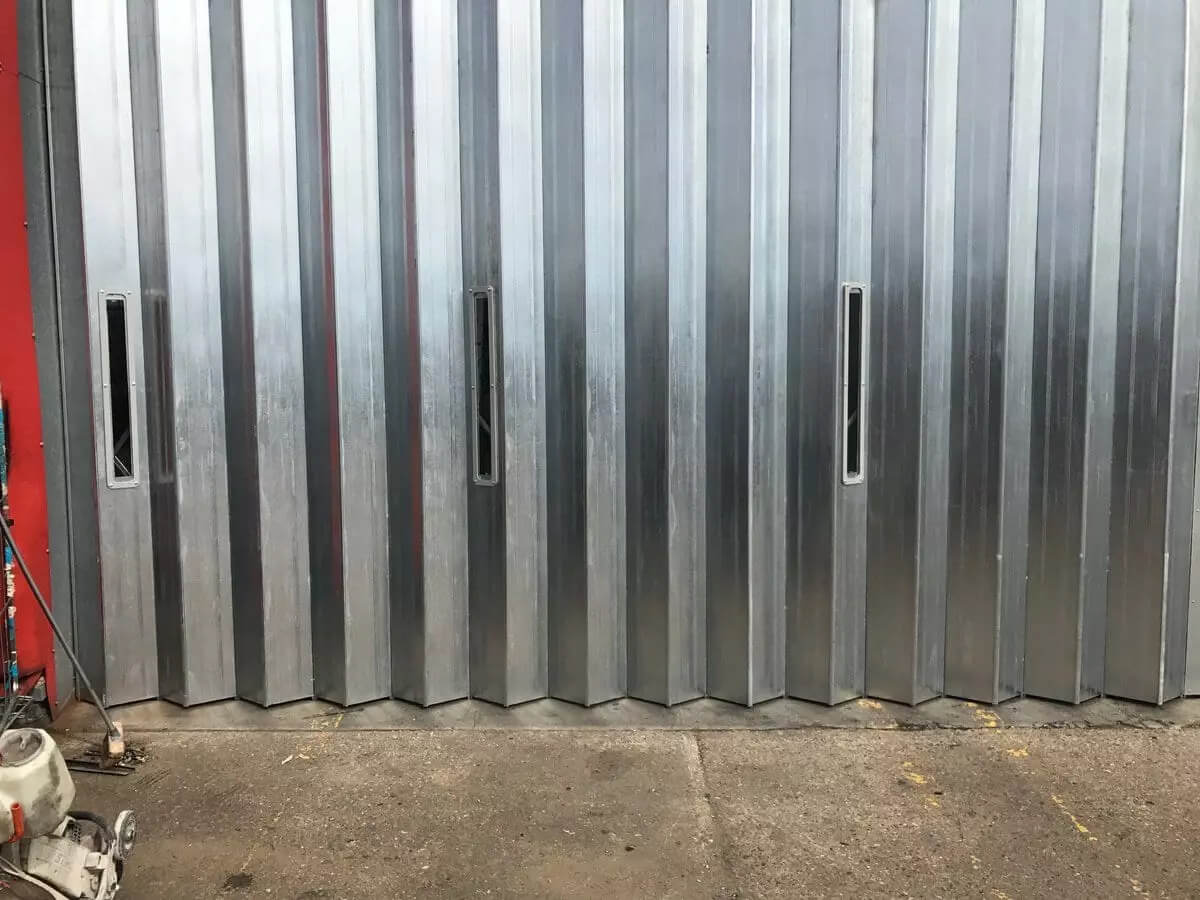

An extensive range of vision and ventilation options, along with alternative hardware to suit the doors individual application and usage.
Industrial Folding Shutters Specification:
- Door Leaf: Cold rolled from 0.9 mm galvanised steel – vertically ribbed for strength.
- Picket, Hinge, Slide Section & Lattice Bar: All manufactured from cold rolled galvanised steel – thickness varying from 1.2 mm to 2 mm as required.
- Top & Bottom Track: Manufactured from 2mm and 3mm cold rolled galvanised steel – the top track is supplied with supporting brackets to suit site conditions.
- Trolley Assembly: All steel zinc plated construction with pre-lubricated ball race assemblies attached to the top of the picker assembly.
- Bottom Guide: Manufactured from zinc plated steel – fixed to the base of picket section and acts as a support for each pair of leaves.
- Operation: Usually manual, with suitable locking arrangements, but for larger and therefore heavier doors, powered operation, with single or 3 phase motors couples with a variety of control systems are available.
